Humminbird Xplore 12 cmsi Fish Finder Sounder

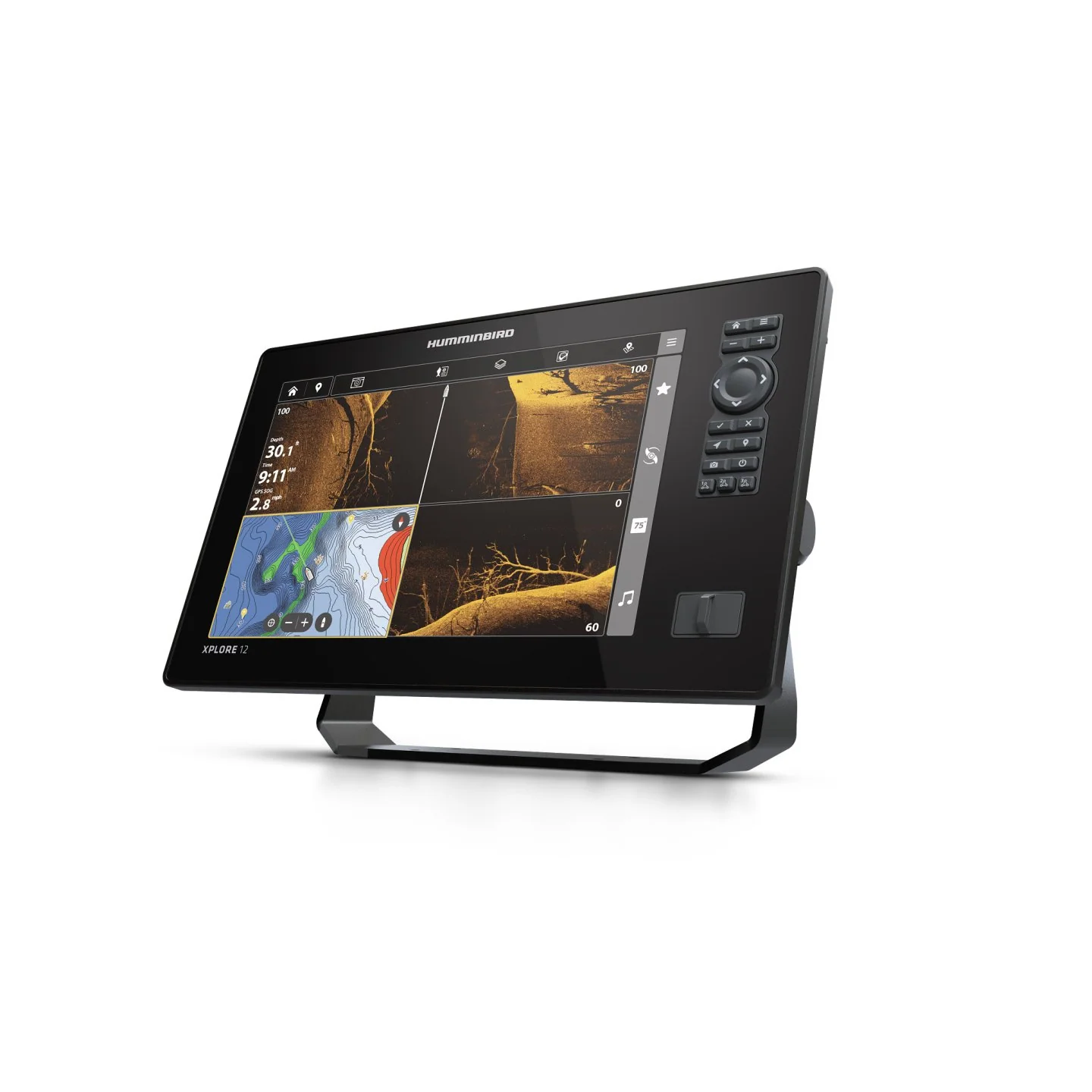

The XPLORE 12 CMSI+ boasts a 12” ultra-clear display and intuitive Cross Touch™, along with MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and an internal GPS. This model also includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking, allowing for compatibility with the One-Boat Network™ from Humminbird, Minn Kota, and Cannon.
Features
- Coast Master Nav Card Included
- Cross Touch Interface
- In Pane Touch Targets
- Anti-glare, edge to edge screen display
- Updated Home Screen and User Interface
- Updated Menu/Setting structure
- New Keypad Design
- Two Micro SD card slots
- Twist lock cable connections
- Wi-Fi Software Updates
- Utilizes the same power cable as APEX units
- Dual Band GPS for better position accuracy
- High-Def Display
- Engineered for Polarized Eyewear
Specifications
| Series | XPLORE |
| Display Size – Diagonal | 30.73 cm |
| Display Pixel Matrix | WXGA 1280 x 800 |
| Sonar Capability | MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible |
| CHIRP-Frequencies Supported | Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o |
| Depth & Range – Sonar | MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz |
| Fish Finder Functionality | Intuitive Cross Touch® Quick-Launch Home Screen |
| Connectivity | CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi |
| Memory Card Slot | Duel Micro SD |
| Waterproof Rating | IPX7 |
| Power Input | 10-20 volts |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Upgradable Software | Yes |
The XPLORE 12 CMSI+ boasts a 12” ultra-clear display and intuitive Cross Touch™, along with MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and an internal GPS. This model also includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking, allowing for compatibility with the One-Boat Network™ from Humminbird, Minn Kota, and Cannon.
Features
- Coast Master Nav Card Included
- Cross Touch Interface
- In Pane Touch Targets
- Anti-glare, edge to edge screen display
- Updated Home Screen and User Interface
- Updated Menu/Setting structure
- New Keypad Design
- Two Micro SD card slots
- Twist lock cable connections
- Wi-Fi Software Updates
- Utilizes the same power cable as APEX units
- Dual Band GPS for better position accuracy
- High-Def Display
- Engineered for Polarized Eyewear
Specifications
| Series | XPLORE |
| Display Size – Diagonal | 30.73 cm |
| Display Pixel Matrix | WXGA 1280 x 800 |
| Sonar Capability | MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible |
| CHIRP-Frequencies Supported | Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o |
| Depth & Range – Sonar | MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz |
| Fish Finder Functionality | Intuitive Cross Touch® Quick-Launch Home Screen |
| Connectivity | CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi |
| Memory Card Slot | Duel Micro SD |
| Waterproof Rating | IPX7 |
| Power Input | 10-20 volts |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Upgradable Software | Yes |
Original: $3,357.61
-65%$3,357.61
$1,175.16Description
The XPLORE 12 CMSI+ boasts a 12” ultra-clear display and intuitive Cross Touch™, along with MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP Sonar, and an internal GPS. This model also includes Wi-Fi, NMEA 2000®, Bluetooth, and Ethernet networking, allowing for compatibility with the One-Boat Network™ from Humminbird, Minn Kota, and Cannon.
Features
- Coast Master Nav Card Included
- Cross Touch Interface
- In Pane Touch Targets
- Anti-glare, edge to edge screen display
- Updated Home Screen and User Interface
- Updated Menu/Setting structure
- New Keypad Design
- Two Micro SD card slots
- Twist lock cable connections
- Wi-Fi Software Updates
- Utilizes the same power cable as APEX units
- Dual Band GPS for better position accuracy
- High-Def Display
- Engineered for Polarized Eyewear
Specifications
| Series | XPLORE |
| Display Size – Diagonal | 30.73 cm |
| Display Pixel Matrix | WXGA 1280 x 800 |
| Sonar Capability | MEGA Side Imaging+ MEGA Down Imaging+ Dual Spectrum CHIRP MEGA Live 2 Imaging+ & MEGA 360 Compatible |
| CHIRP-Frequencies Supported | Full: 150-220 kHz @ 25/42o Narrow: 180-240 kHz @ 25o Wide: 140-200 kHz @ 42o |
| Depth & Range – Sonar | MEGA Side Imaging+® Range: 800ft (244m) 455 kHz: 405-505 kHz 400ft (122m) MEGA: 1100-1200 kHz MEGADown Imaging+® Depth: 400ft (122m) 455 kHz: 420-520 kHz 200ft (61m) MEGA: 1125-1225 kHz |
| Fish Finder Functionality | Intuitive Cross Touch® Quick-Launch Home Screen |
| Connectivity | CE NMEA 2000® Bluetooth® Ethernet Wi-Fi MFi |
| Memory Card Slot | Duel Micro SD |
| Waterproof Rating | IPX7 |
| Power Input | 10-20 volts |
| Power Output Peak-to-Peak | 8000 Watts |
| Power Output RMS | 1000 Watts |
| Transducer Mount Location | Transom |
| GPS Chartplotting | Included |
| GPS Trackplotting | Included |
| LakeMaster Compatibility | Yes |
| Coast Master Compatibility | Yes |
| Navionics Gold/HotMaps Compatibility | Yes |
| Navionics Platinum + Compatibility | Yes |
| Platinum Compatibility | Yes |
| Heading Sensor GPS Compatibility | Yes |
| Upgradable Software | Yes |
